Full waveform SSIP instrument
GS2IP-FW10
GS2IP-FW10
To realize the separation of ore and non-ore areas and the exploration of large depth, high precision and high efficiency
3kW transmission can detect depths of more than 1000m; The amount of data is more than 10 times that of conventional methods. The exploration efficiency of Class II terrain at a depth of 1km can reach 10 times that of conventional methods. The frequency domain resolution is twice that of the convent
1. Parallel synchronous acquisition channel: 6
2. Background noise: 6nV/VHz
3. Sample rate: 15/150/2400Hz automatic control
4. ADC: 32 bit output
5. Magnification: 1-64 times automatic control
6. Beidou/GPS synchronization accuracy: 30ns
7. Total dynamic range: 166dB
8. Power consumption: 2W
9. Power supply: 5W/1A, powerbank can be used
10. Connection mode: Wired network cable connection, wireless Zigbee connection (maximum distance of 1.6km under visual conditions)
11. Weight: 2.8kg
12. Maximum number of connections: A maximum of 65536 for wireless networking and 255 for wired networking
-
ParametersTransmitter technical parameters:
1.Transmitting waveform: square wave, multi-frequency wave, spread spectrum wave.
2.Number of transmitting frequencies: 1 to 256.
3.Transmitting mode: single frequent transmitting, sweep frequent transmitting.
4.Maximum transmitting voltage: 1000V/ 2000V optional.
5.Maximum transmitting current: 5A/10A/15A/20A/30A optional.
6.The voltage regulator power module can be combined in series: multiple power modules can be connected in series or parallel to increase the transmitting voltage or transmitting current to meet the needs of high-power output under various grounding conditions.
7.Transmission frequency: base frequency 1/8192-128 Hz controllable.
8.Synchronization mode: GPS.
9.Synchronization accuracy: 30 ns.

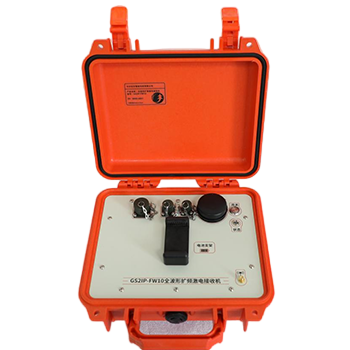

10.Current signal output: According to the maximum power supply current output by the Hall sensor current sampling signal of different sensitivity.Full waveform SSIP receiver aaaaaaaaaaaaa -

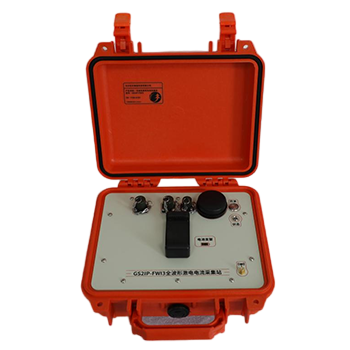

ParametersNo configuration infoFull waveform IP current acqui -

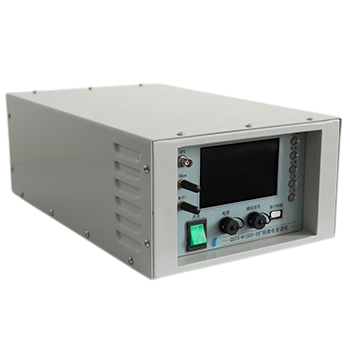

ParametersNo configuration infoSSIP transmitter -

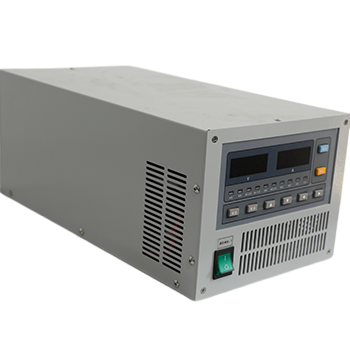

ParametersNo configuration infoDC regulated power supply
-
Mineral exploration
-
Groundwater and geothermal
-
Karst, goaf, pipeline seepage
-
Oil &. gas
